• L-type Sealing Machine  Packing Height 20-50 mm

L-type Sealing Machine Packing Height 20-50 mm

Model : YC-300HL,YC-450HL,YC-450WR,YC-600HL,YC-600WR,YC-800HL,YC-800WR, L Bar,L type,L-Bar

  • Impulse Heat: with special electrothermal wires and porcelain, it seals neatly and quickly.
  • Used with Film Dispenser to put the film, making packaging easy.
  • Easy to use, assemble and repair.
  • The use of special silicon inserts results in excellent seals.
  • Film Available: POF, PE
  • Sealing Speed: 10~15 packs / minute


Model No. Dimensions LxWxH(mm) Weight(kg) Voltage Impulse Power Max/Seal Length(mm) Max Package Thickness(mm)

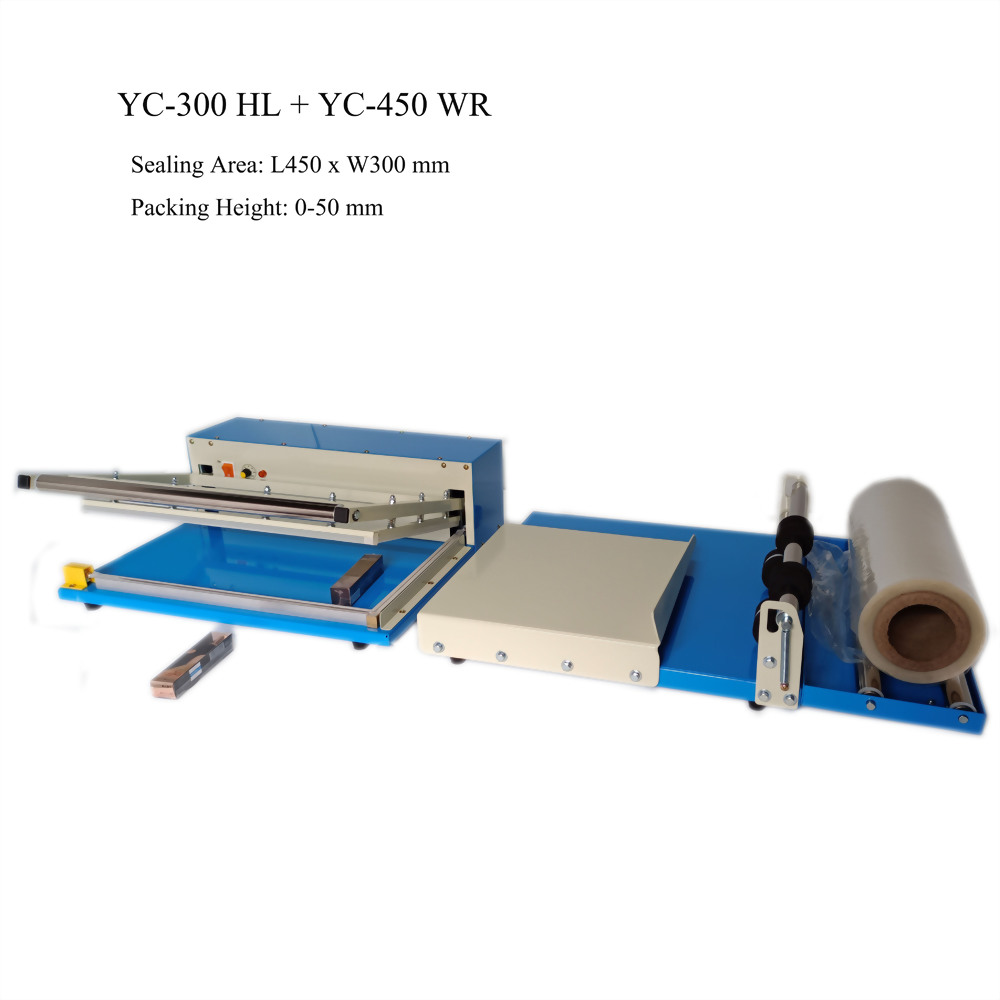

YC-300 HL
550x480x190 21 110V/220V/240V
1200W 450x300 20-50

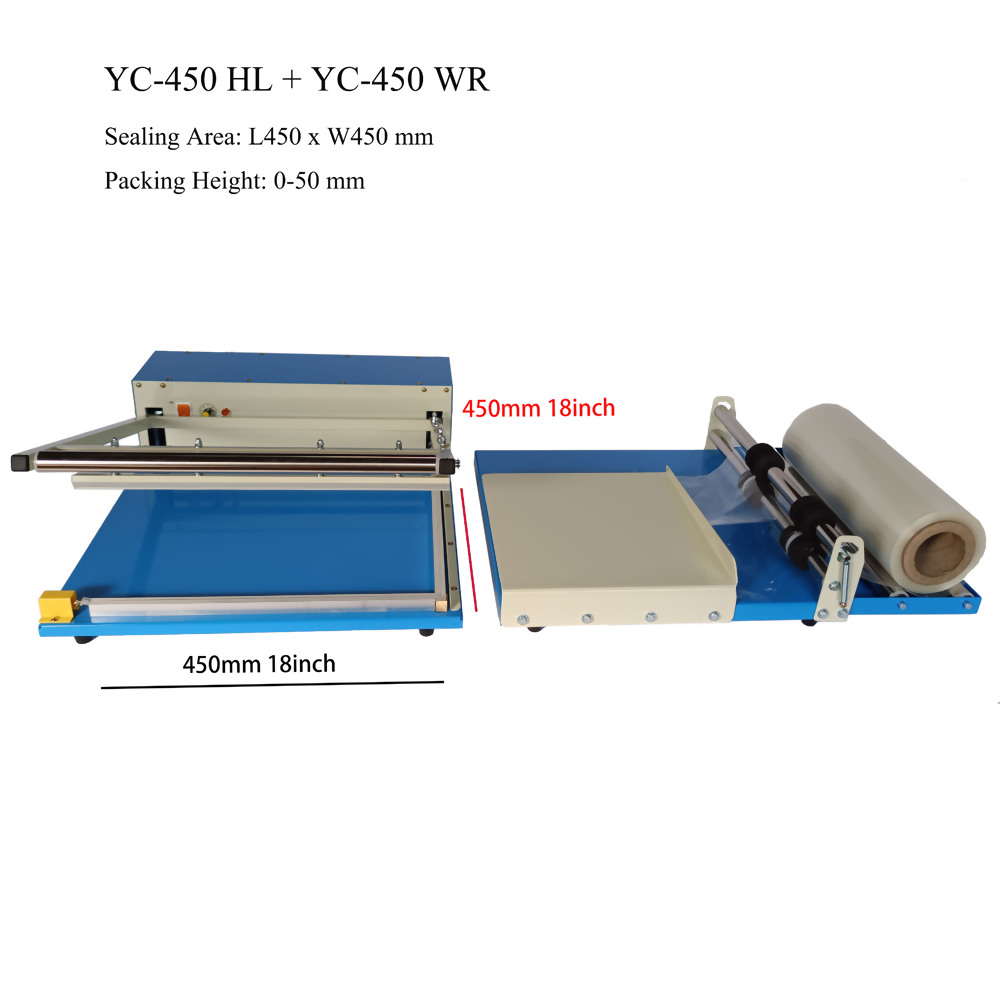

YC-450 HL 550x630x190 25 110V/220V/240V 1500W 450x450 20-50

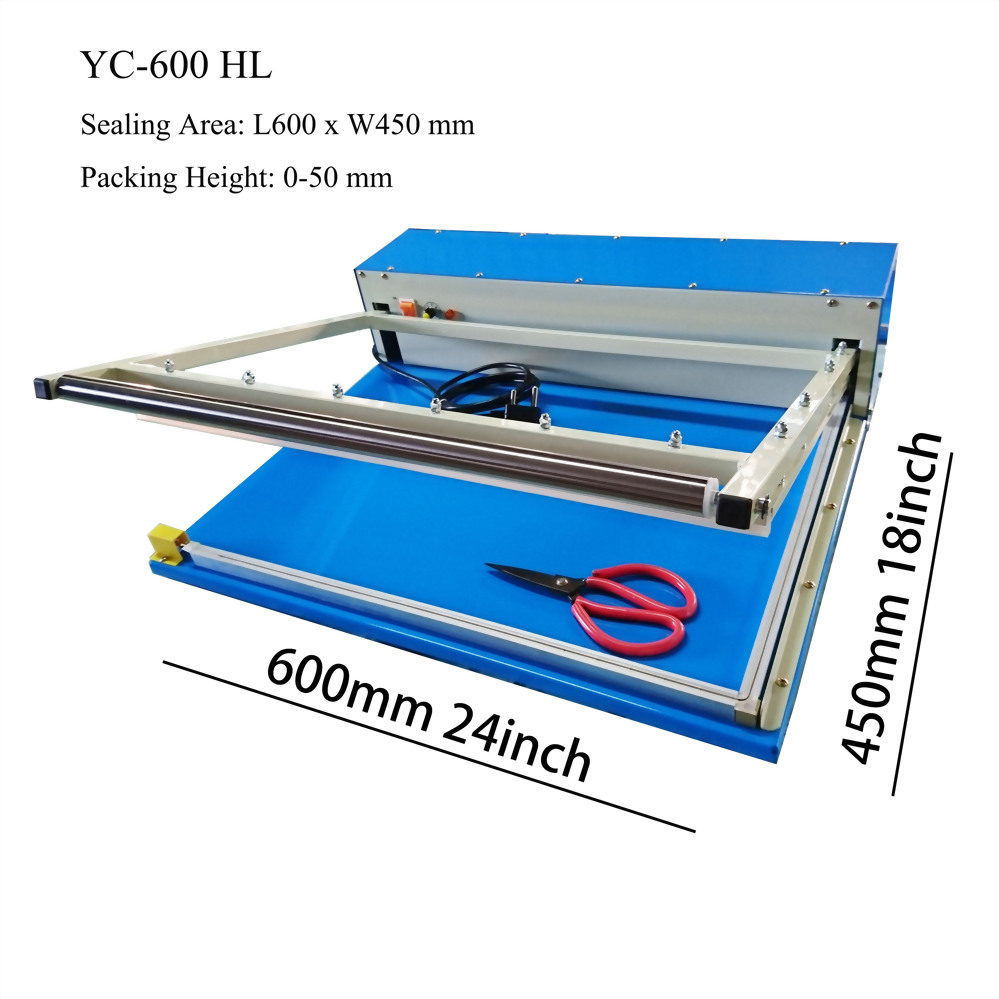

YC-600 HL 750x630x190 28 110V/220V/240V 1800W 600x450 20-50

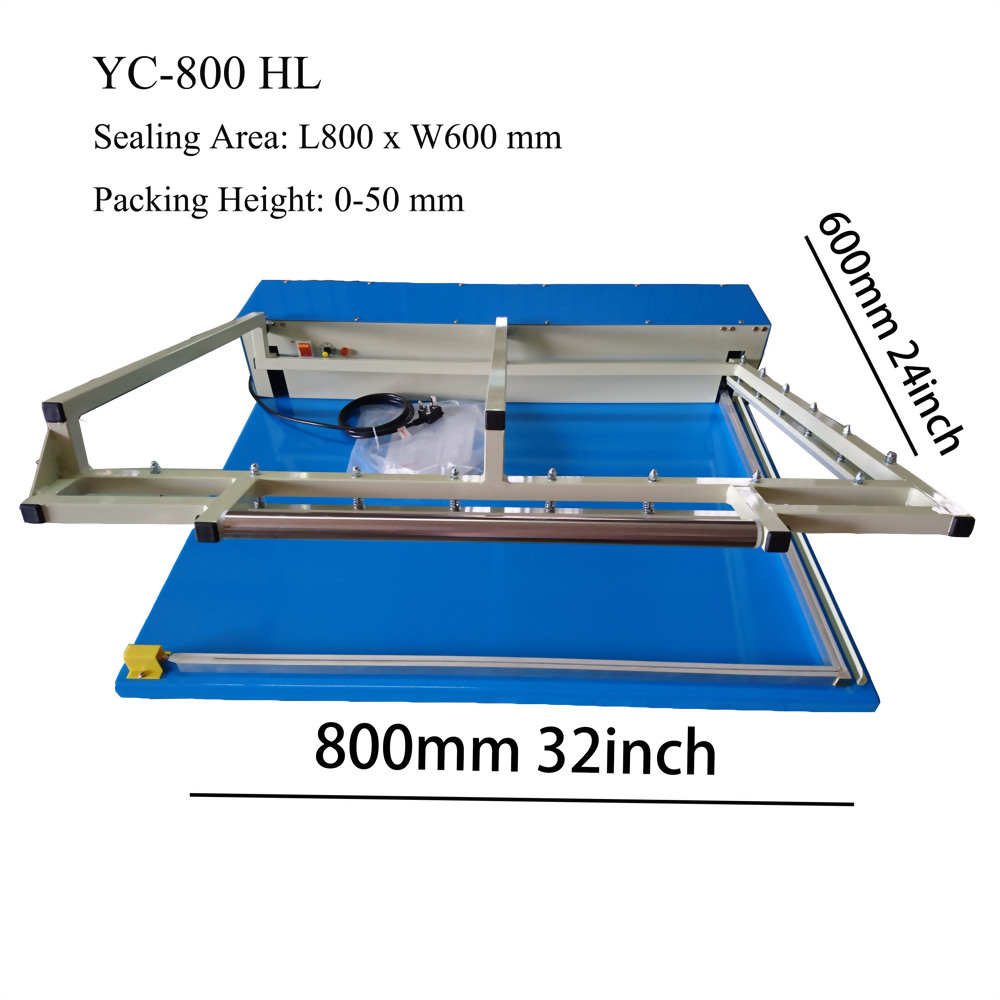

YC-800 HL
860x930x260
38 110V/220V/240V
2000W 800x600 20-50

Model No. Dimensions LxWxH(mm) Weight(kg)
YC-450 WR 700x500x140 14
YC-600 WR 850x500x140 18
YC-800 WR 980x660x140 25
