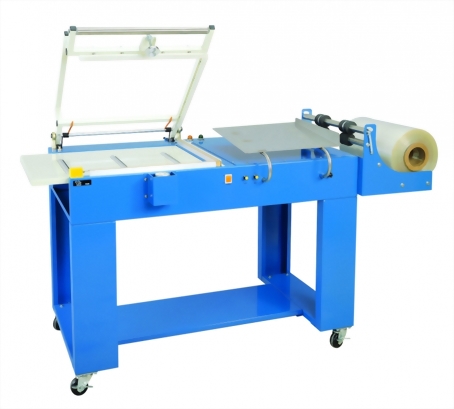

Magnetic hold down for easy operation. Adjustable packing tray depth, 20-250mm pack heights. Equipped with table rollers, easy to move products after sealing. Impulse Heat: with special electrothermal wires and porcelain, it seals neatly and quickly. The use of special silicon inserts results in excellent seals. Easy to use, assemble and repair. Film Available: POF, PE, PVC

Model No. Dimensions LxWxH(mm) Weight(kg) Voltage Impulse Power Max/Seal Area(mm) Max Package Thickness(mm) YC-450 LC 1550x660x1260 70 110V/220V/240V 1500W 450x450 20-250
YC-600 LC 1700x660x1260 85 110V/220V/240V 1800W 600x450 20-250

Magnetic hold down for easy to use. Adjustable packing tray depth, 20-250mm pack heights. Impulse Heat: with special electrothermal wires and porcelain, it seals neatly and quickly. Used with Film Dispenser to put the film, making packaging easy Easy to use, assemble and repair. The use of special silicon inserts results in excellent seals. Film Available: POF, PE


Model No. Dimensions LxWxH(mm) Weight(kg) Voltage Impulse Power Max/Seal Area(mm) Max Package Thickness(mm) YC-450 LA 550x740x600 34 110V/220V/240V 1500W 450x450 20-250
YC-600 LA 710x740x600 40 110V/220V/240V 1800W 600x450 20-250
YC-800 LA
920x890x700 45 110V/220V/240V
20000W 800x600 20-250

Model No. Dimensions LxWxH(mm) Weight(kg) YC-450 WA 740x520x270 22 YC-600 WA 850x520x270 25 YC-800 WA 990x670x270 32


.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

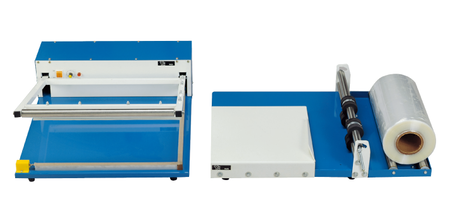

  HL model is set height L type sealer machine, suitable for packing height 20-50mm products, for example: books, magazines, comic books, stationeries, cosmetics, skin care products and CD, VCD.
  In order to meet various requirements, we have 4 different sizes, packing area: L450xW300mm, L450xW450mm, L600xW450mm and L800xW600mm. Yon can find a most suitable model for packaging.
  HL model uses impulse heat, featuring a short heating cycle that enables fast, clean, and aesthetically pleasing seals. It is compatible with a wide range of plastic shrinking films, such as POF, PP, and PE. The machine can also be paired with the Film Dispenser WR model to place the film roll and enhances both packaging speed and operational efficiency.   In addition to being placed directly on a tabletop, the machine can be equipped with an optional worktable and stands for easier mobility and operation. For facilities with limited workspace where a table-and-stand assembly is not practical, the specially designed HLF1 model offers a space-saving solution while maintaining the same sealing performance.

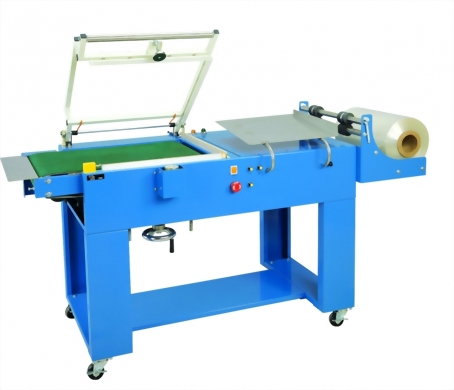

  For products with greater heights or larger dimensions, users may consider the YC-LA/LB adjustable-height tabletop L-bar sealers. Alternatively, integrated L-bar sealer models such as the YC-LC and LD series, which feature adjustable packaging heights, are also available to accommodate a wider range of packaging requirements.



Impulse Heat: with special electrothermal wires and porcelain, it seals neatly and quickly. Used with Film Dispenser to put the film, making packaging easy. Easy to use, assemble and repair. The use of special silicon inserts results in excellent seals. Film Available: POF, PE, PP Sealing Speed: 10~15 packs / minute
Model No. Dimensions LxWxH(mm) Weight(kg) Voltage Impulse Power Max/Seal Length(mm) Max Package Thickness(mm) YC-300 HL
550x480x190 21 110V/220V/240V
1200W 450x300 20-50 YC-450 HL 550x630x190 25 110V/220V/240V 1500W 450x450 20-50
YC-600 HL 750x630x190 28 110V/220V/240V 1800W 600x450 20-50
YC-800 HL
860x930x260
38 110V/220V/240V
2000W 800x600 20-50

Model No. Dimensions LxWxH(mm) Weight(kg) YC-450 WR 700x500x140 14 YC-600 WR 850x500x140 18 YC-800 WR 980x660x140 25
.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

Less cost with more protection: abundant air and fewer materials required to reduce packaging costs and better protection for your products. Packaging consumables made from bio-degradable materials: reducing environmental pollution and costs to you. Prompt production: producing when you need it, reduce inventory stock and costs. Advertising: print your company logo in a random print or information on the Air Pad film is an effective way to increase brand awareness. Operator friendly: easy to use and portable, little space required and no air compressor needed Size and air amount adjustable: depending on the product size to adjust the amount and length you need. Various films available: regardless of LDPE or HDPE, various film thickness are available.
Model No. Machine Size LxWxH(mm) Power Watt Speed YC-03 FD 600x450x425 1⌀110V/220V/240V 700W 0~18M
